Real-Time Field Data

Telemetry & Sensors

Connects existing and new sensors in remote locations.

Powered byWoodpecker Microsystems

Hermit S1

Rugged Satellite Telemetry Equipment

Connects Existing and New Sensors in Remote Locations

  • Low-cost, robust data collection anywhere
  • Works with a wide range of sensors
  • Solitary operation in remote areas
  • Long-term uninterrupted data collection
  • Large on-board memory (4MB/16MB)
  • Overcomes terrestrial connectivity limits
  • Supports scientific & industrial interfaces
  • Plug & Play with Iris Central IoT Suite
  • IP67 Weatherproof
  • Solar / Battery Powered
  • Direct-to-Satellite Connectivity
  • Local Data Storage

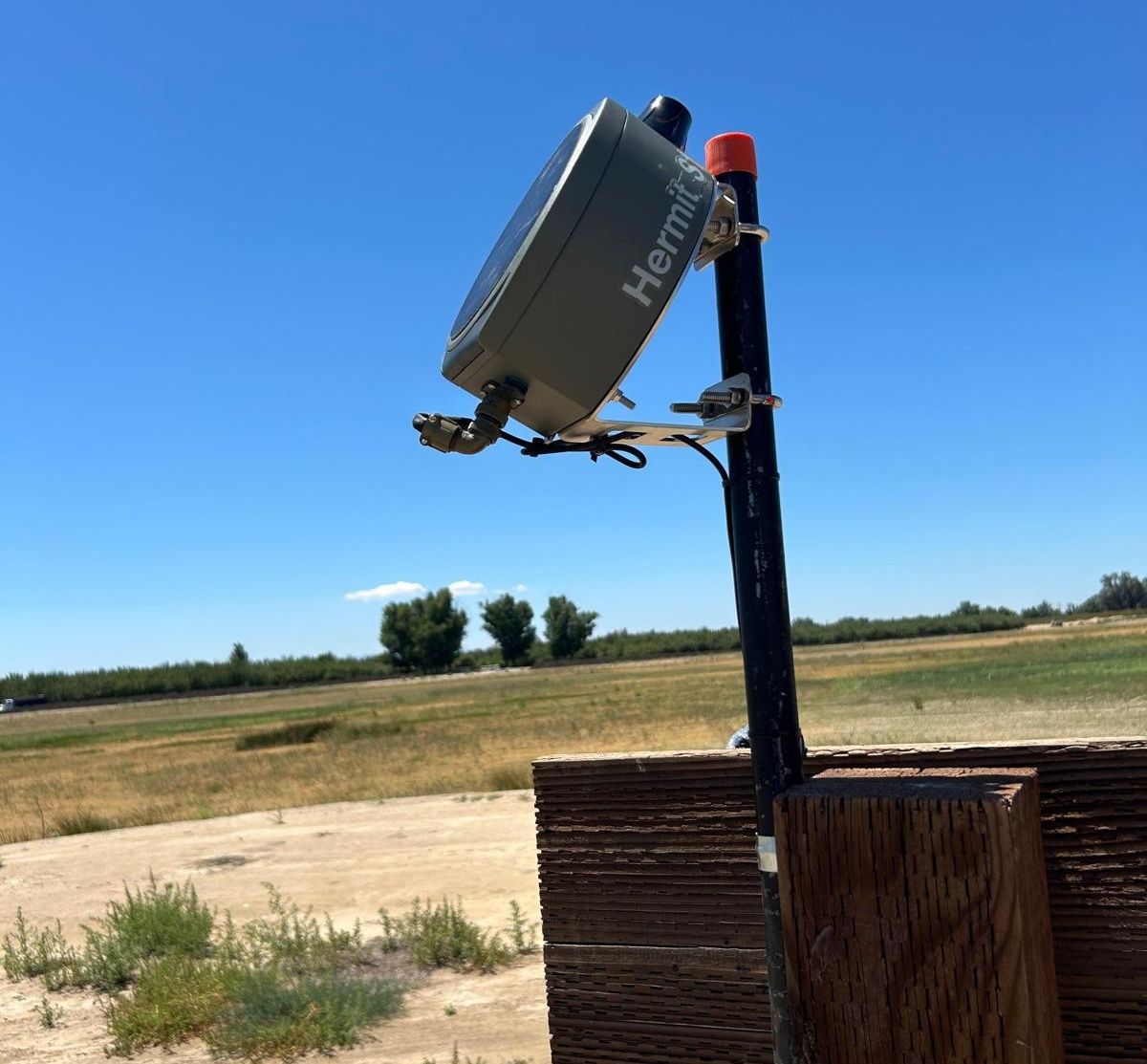

Hermit S1 telemetry unit mounted on a pole above a well housing in farmland

Specifications

Hermit S1 Telemetry Unit

Interfaces
Multiple interfaces, 2 external connectors max.
Sensor protocols
SDI-12, 4–20mA, 0–5V, Digital Input, Pulse Counter, RS485/Modbus
Satellite
LEO Direct-to-Satellite (399.910 to 401.680 MHz)
Antenna
Internal / External
Geolocation
GNSS & Satellite Doppler
Power
Rechargeable Li-ion battery, Solar or DC power (4–12V)
Transmit interval
Up to once per minute
Operating temperature
−20°C to +55°C
Rating & certification
IP67 / FCC, CE pending

Telemetry Options

Secure, Reliable Communication from Any Location

Low-Power Wide Area Network (LPWAN)

  • Robust protocol, low power consumption and low maintenance
  • Typical transmission interval: every 10 minutes to 1 hour
  • Expandable to 100s of sensors within gateway range
  • Flexible sensor placement within the coverage area
  • Multiple backhaul options: Cellular, Ethernet, Wi-Fi, Satellite

LEO Satellite

  • Simple setup, direct-to-satellite, low power consumption
  • Typical transmission interval: every 1 hour to once a day
  • Low data rate (few parameters) and isolated deployments
  • Locations with good visibility of sky (10 to 80 degrees altitude)

Cellular

  • Low and high data rate sensors
  • Transmission interval: every second to every hour
  • Needs good cellular coverage at the deployment site

Sensors

Groundwater Monitoring

  • Monitoring Wells
  • Pressure Transducer
  • Multi-parameter Sondes
  • Telemetry: Satellite / LPWAN / Cellular

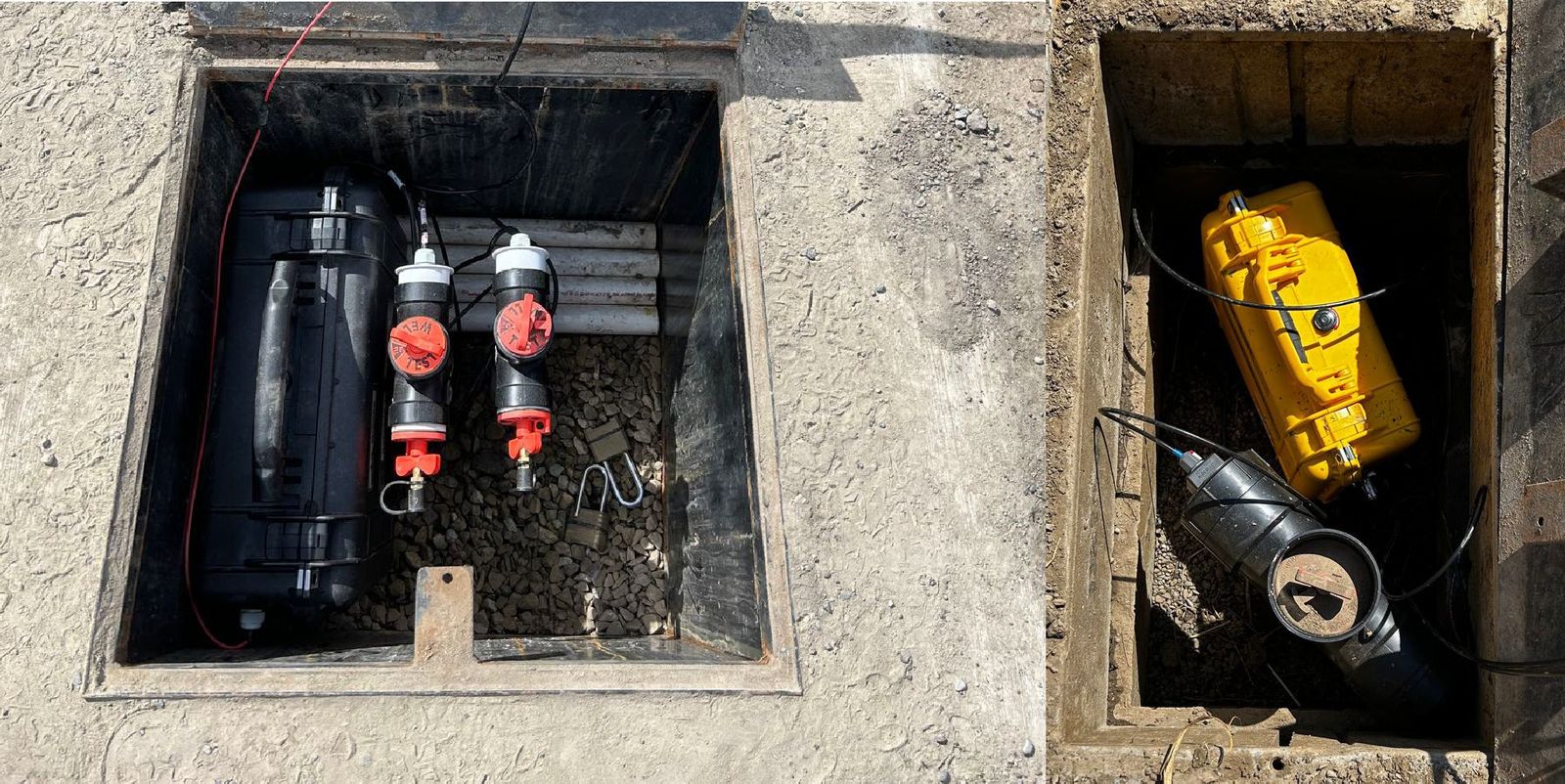

Open in-ground vaults showing a pressure transducer and multi-parameter sondes with cabling

Installation options

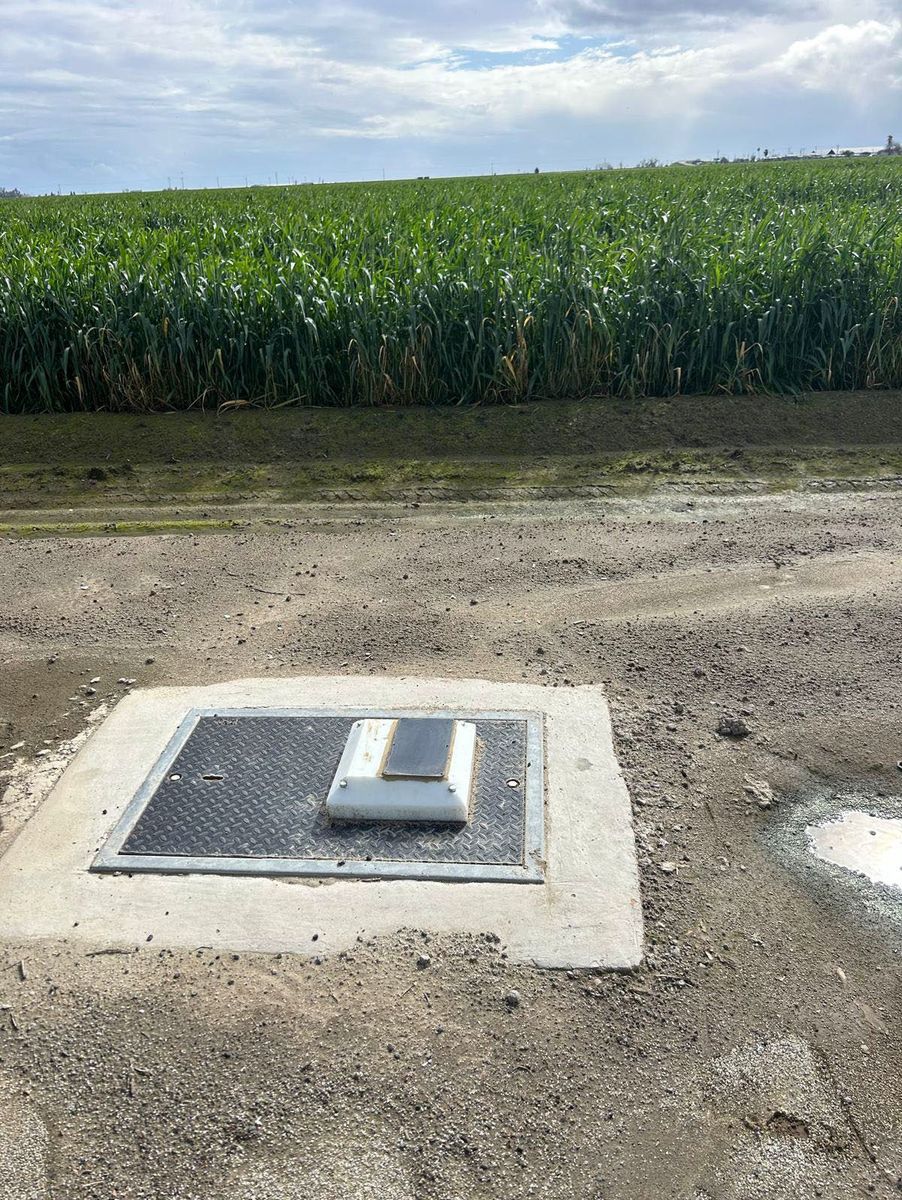

  • Flush in-ground vault cover installed at the edge of a crop field

    In-Ground Vault System (Satellite / LPWAN)

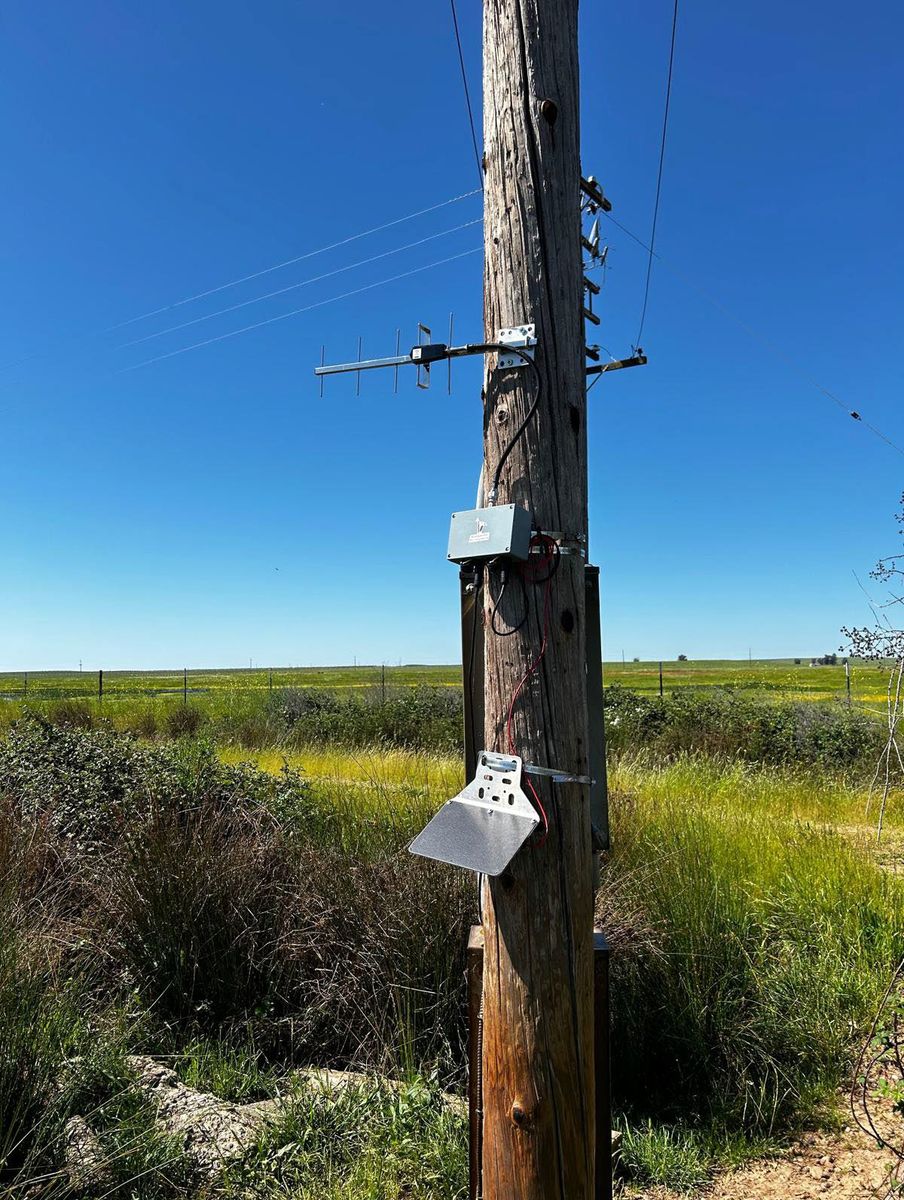

  • Telemetry unit mounted on a wooden utility pole beside a field

    Pole-Mounted (LPWAN)

  • Field team at a remote dry site beside a solar-powered satellite telemetry unit

    Beyond Cellular Coverage

Weather Stations

Weather Station Network

  • Collects rainfall, solar radiation and other key weather data
  • Supports flood mapping, flood forecasting and RDI
  • Robust, low-maintenance stations for all weather conditions
  • Installed and maintained by local electrical certified professionals
  • Rainfall
  • Solar Radiation
  • Temperature & Humidity
  • Wind Speed & Direction
  • Soil Temperature (Optional)

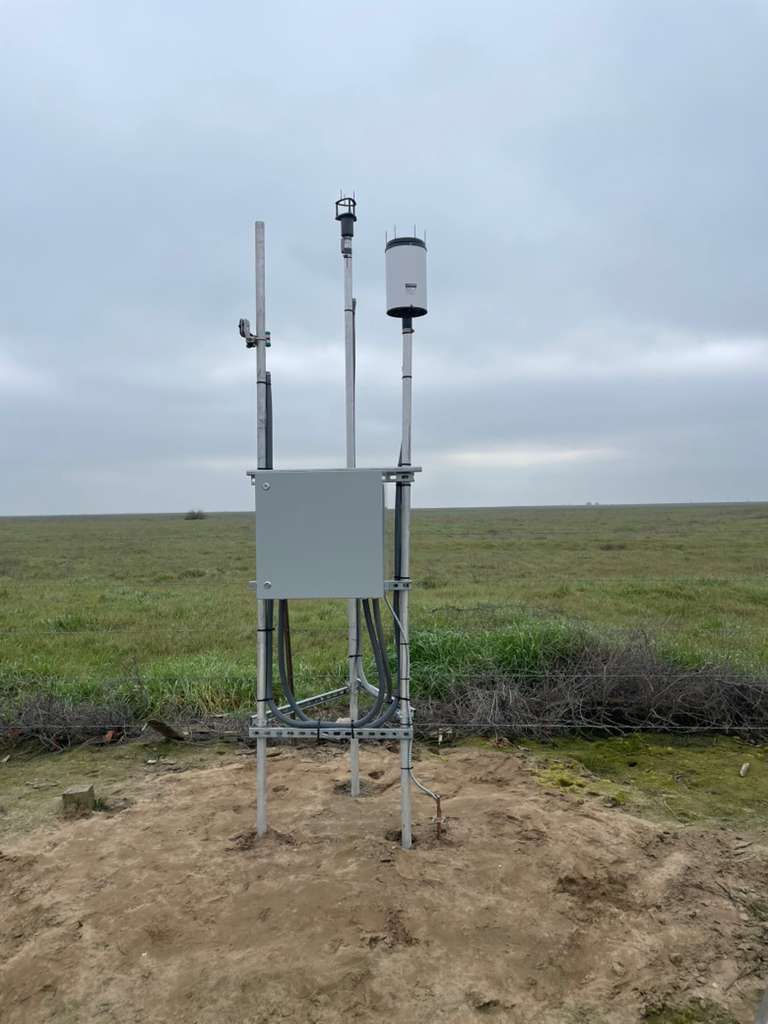

Weather station with rain gauge, sensors and an equipment enclosure in a grassy field

Better Data. Better Decisions. Better Outcomes.

Tell us what you need to measure and where, and our team will design the sensors, telemetry, and platform setup.
